BLC4385F

Time:2019-11-11


BLC4385F
Filter By Gauge (micron): 1000,1500,2000,3000
Filter By Finish: Velvet,Velvet
Filter By Color: white

Physical Parameters

Item

Property

Value

Unit

Test Method

Optical

Light Transmission

75±3

%

ASTM D1003

Haze

95±2

%

ASTM D1003

Physical

Density

1.2

g/cm3

ISO 1183

Water Absorbing Capacity

0.3

%

ASTM D570

Mechanical

Tensile Strength

60

MPa

ISO 527

Elongation

>50

%

ISO 527

Tensile Modulus

2300

MPa

ISO 527

Flexural Strength

85

MPa

ISO 178

Electrical

Dielectric Constant

3

-

IEC60250

Resistant Puncture Voltage

30

KV/mm

IEC 60243

Arc Resistivity

250

-

IEC60112

Surface Resistivity

1.00E+16

Ω/square

IEC 60093

Volume Resistivity

1.00E+17

Ω-cm

IEC 60093

Thermal

Coefficient of Thermal Expansion

5.8

×10-5/℃

ISO 11359

Thermal Conductivity

0.2

W/(m*K)

ASTM D5470

Thermal Shrinkage (at 150℃)

0.50.7

%

ASTM D1204

Tg

152

ISO 11357

Flammability

UL94

V-0

             UL94

Tip: This test data is for reference only, not as an absolute application index.


Certification

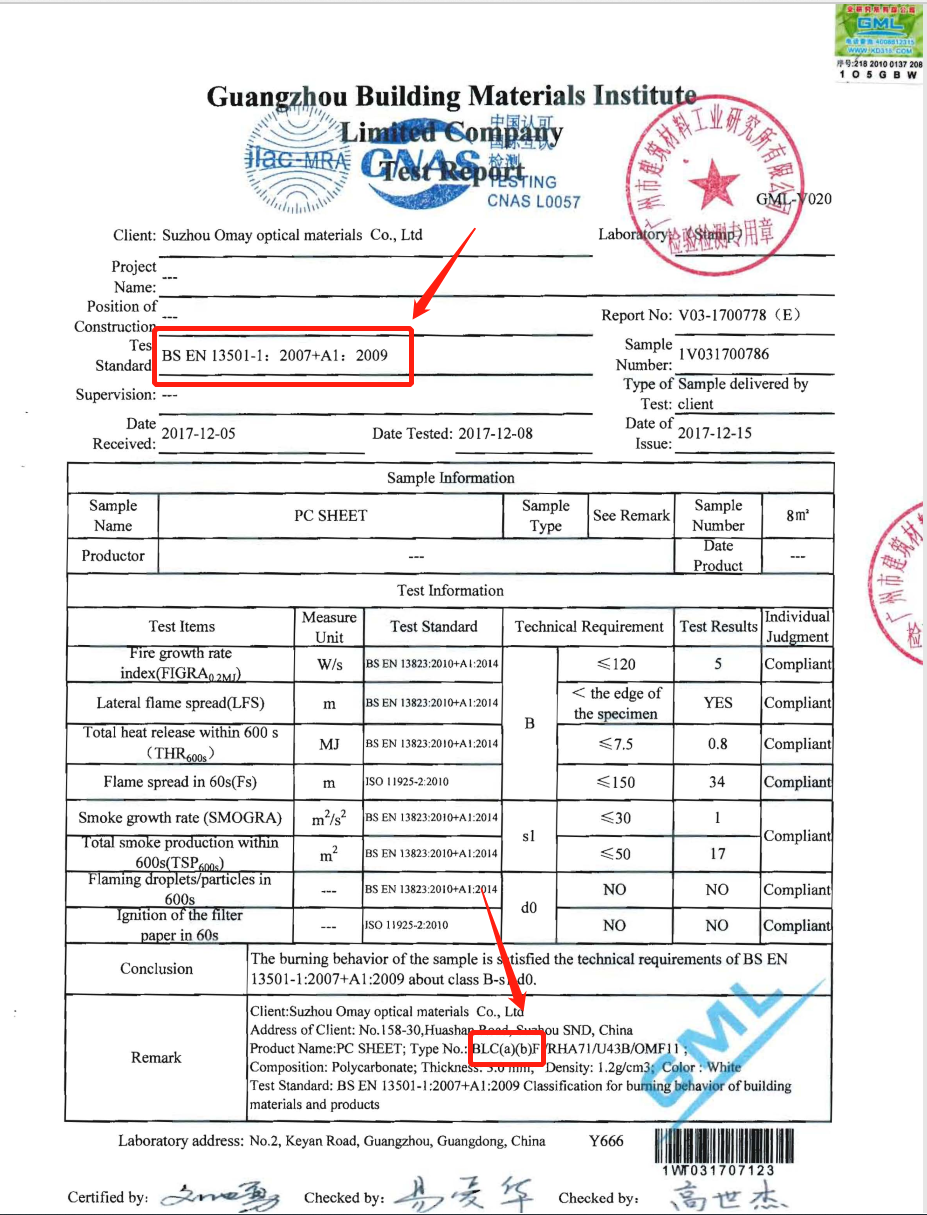

BS EN 13501 test report

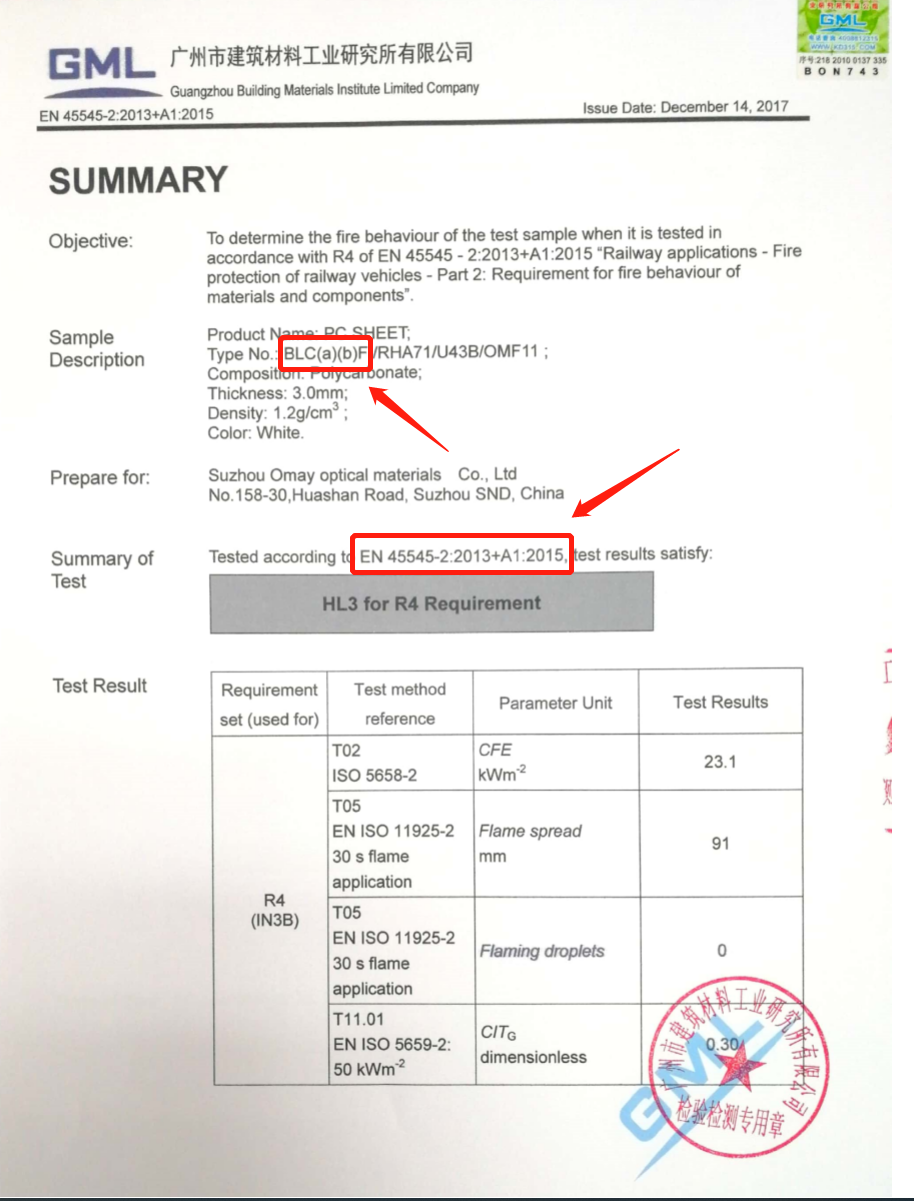

EN45545-2 Test Report

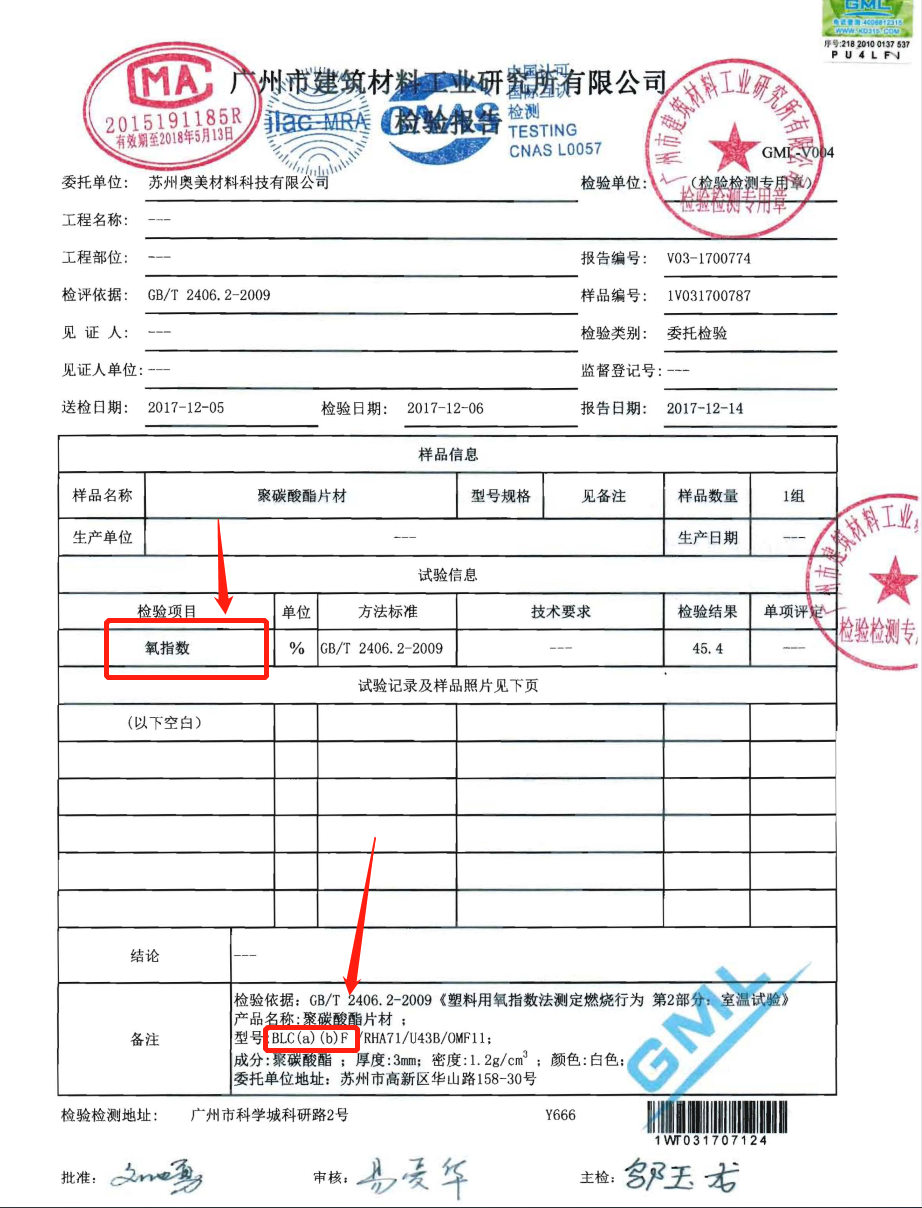

oxgen index test report

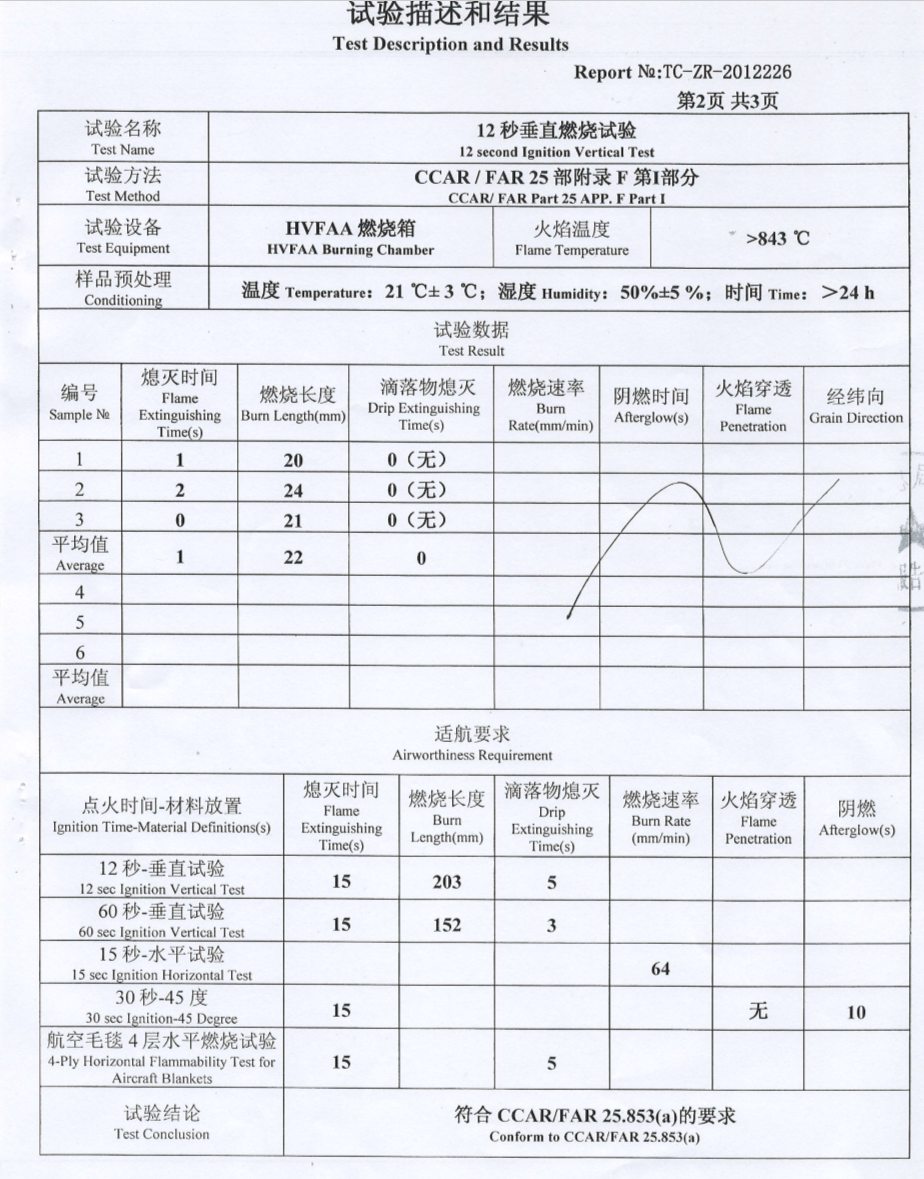

12 second Igniition Vertical test

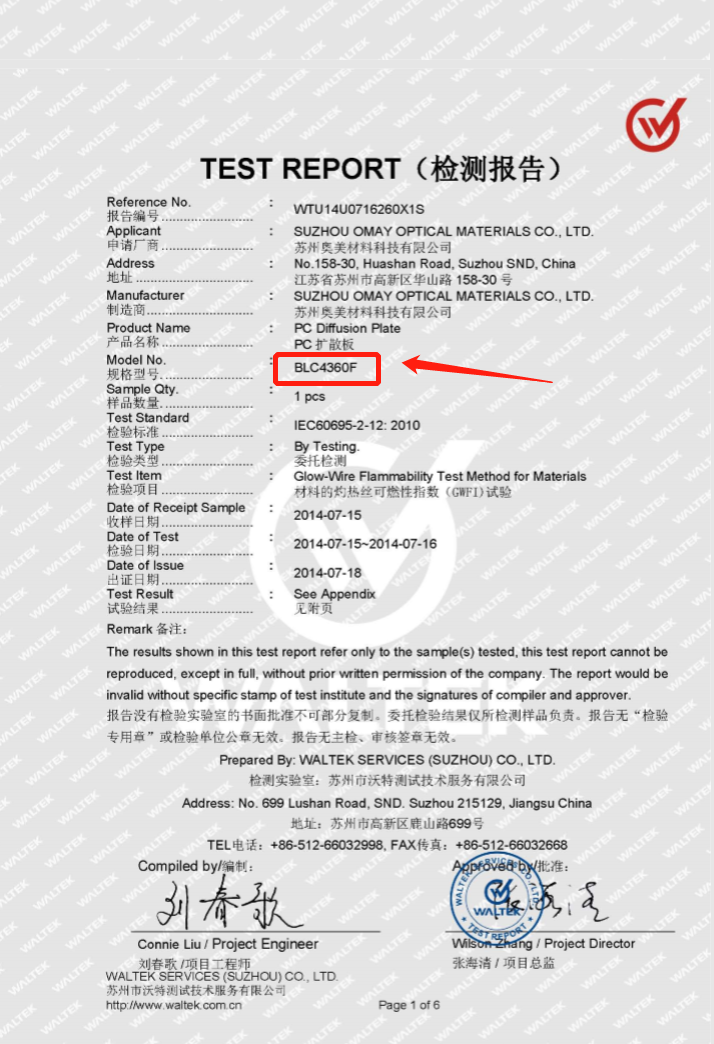

Glow-Wire Flammability test report


Product Application


Dimensions



Model

size of metric system

size of british system

Packing Standard

Thickness
  mm

Width×Length
  mm×m

Thickness

inch

Width×Length

foot×foot

BLC+

0.8

1220×2440

0.0300’’

4′×8′

Sheet

1.0

1220×2440

0.0400’’

4′×8′

1.5

1220×2440

0.060’’

4′×8′

2.0

1220×2440

0.0800’’

4′×8′

3.0

1220×2440

0.1200’’

4′×8′
